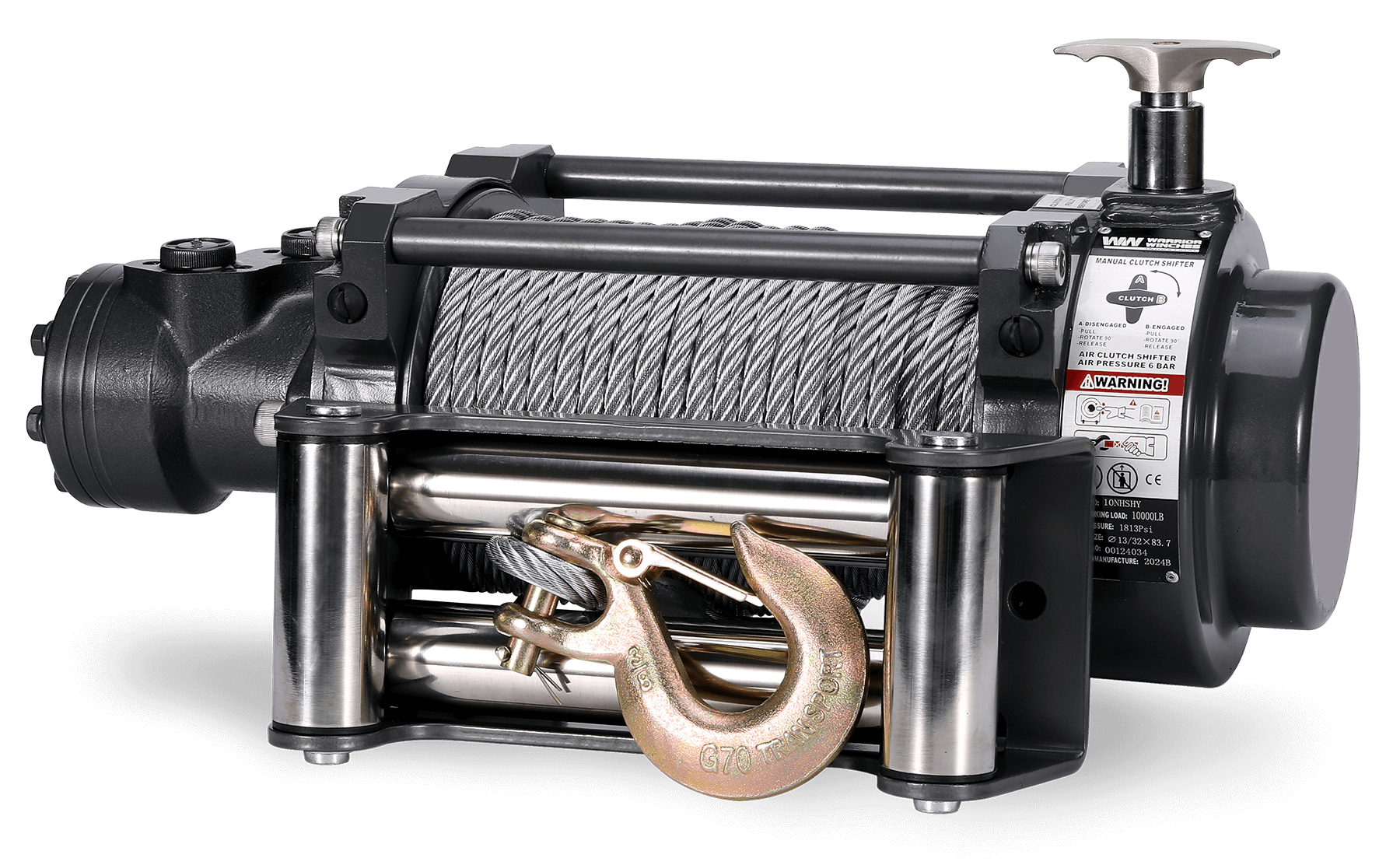

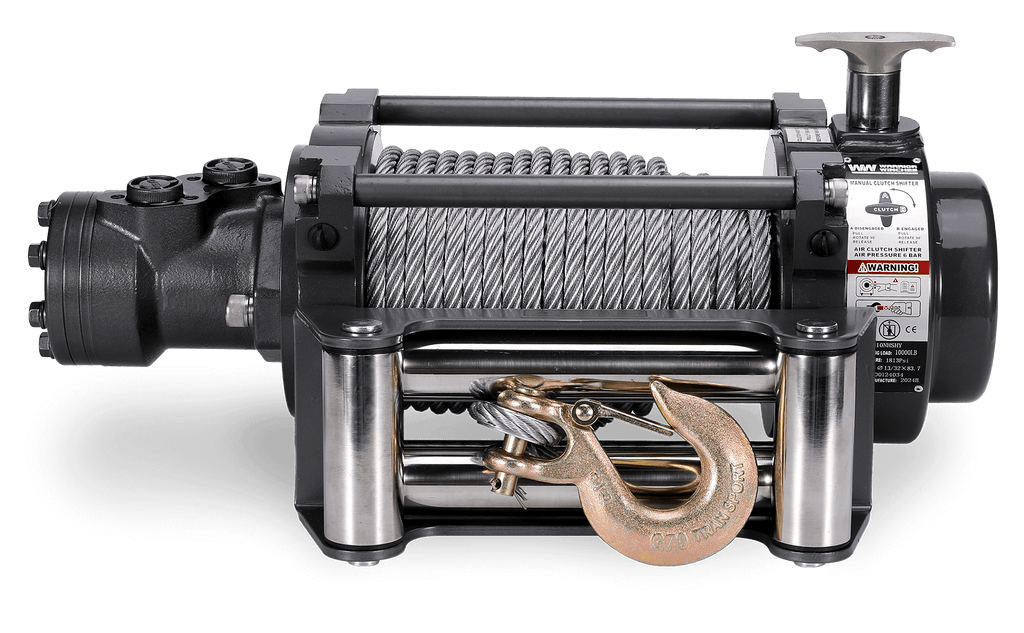

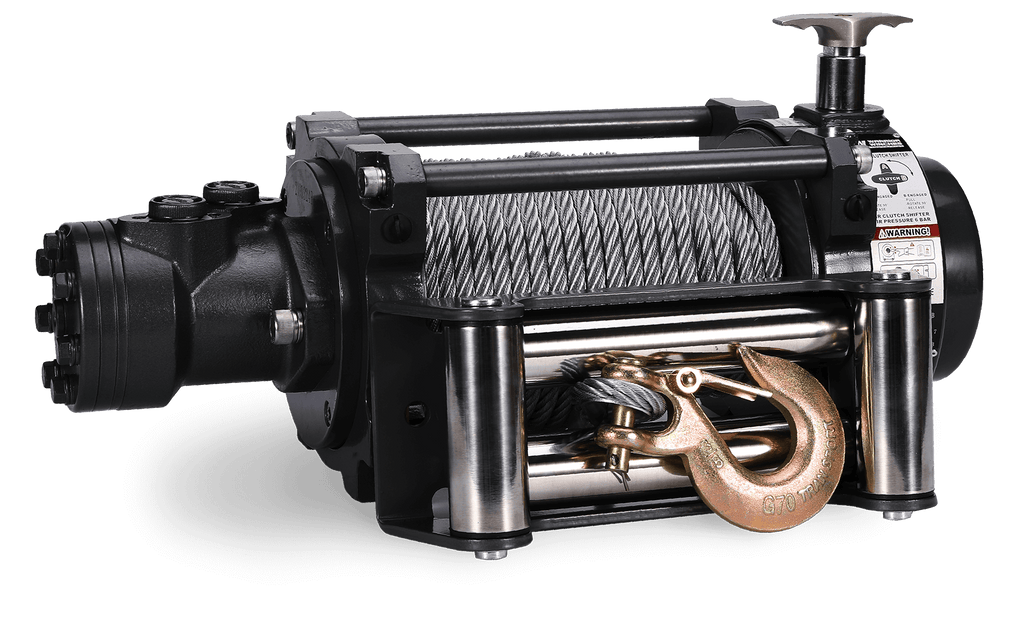

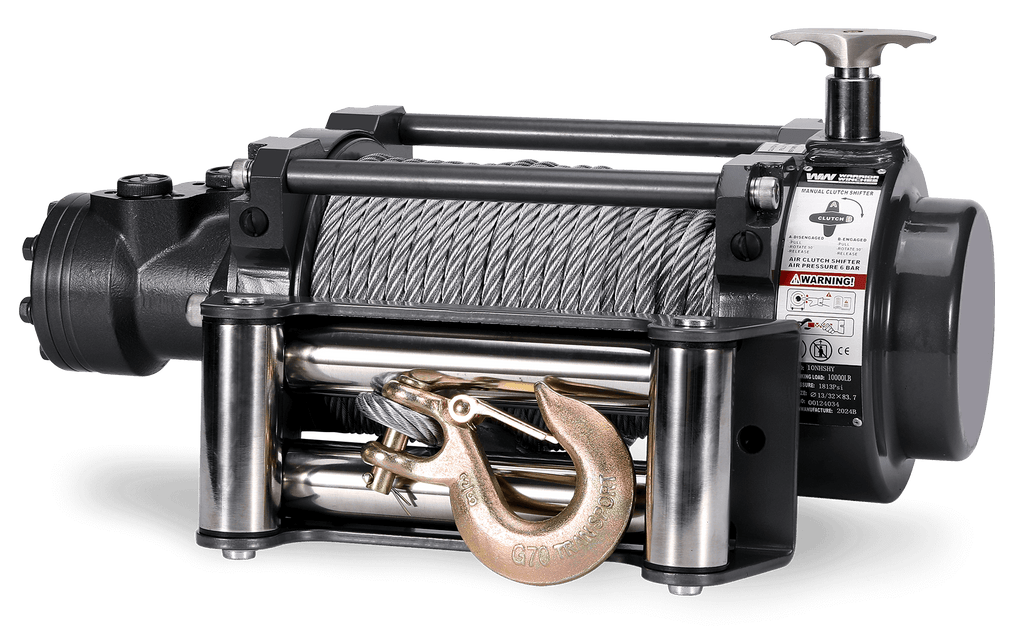

Compact, résistant. Treuil hydraulique pour applications industrielles et commerciales. Son système d'engrenage en acier breveté et son moteur hydraulique puissant et très efficace garantissent des performances optimales quelle que soit la charge. Equipé d'un frein interne pour assurer le contrôle et le maintien de la charge. Les guide-câbles à roulement et les raccords en acier inoxydable sont livrés de série.
| Traction nominale de la ligne | 15 000 livres |
| Type de moteur | Hydraulique |
| Engrenage | 33,4:1 |
| Embrayage | Manuel |
| Action de freinage | Auto dans le tambour |
| Taille du tambour (Dia x L) | 89x217mm |
| Matériau du câble | Acier |
| Câble – Dia x L | 12 mm x 26,5 m |
| Modèle de montage | 254 mm x 114,3 mm mm |

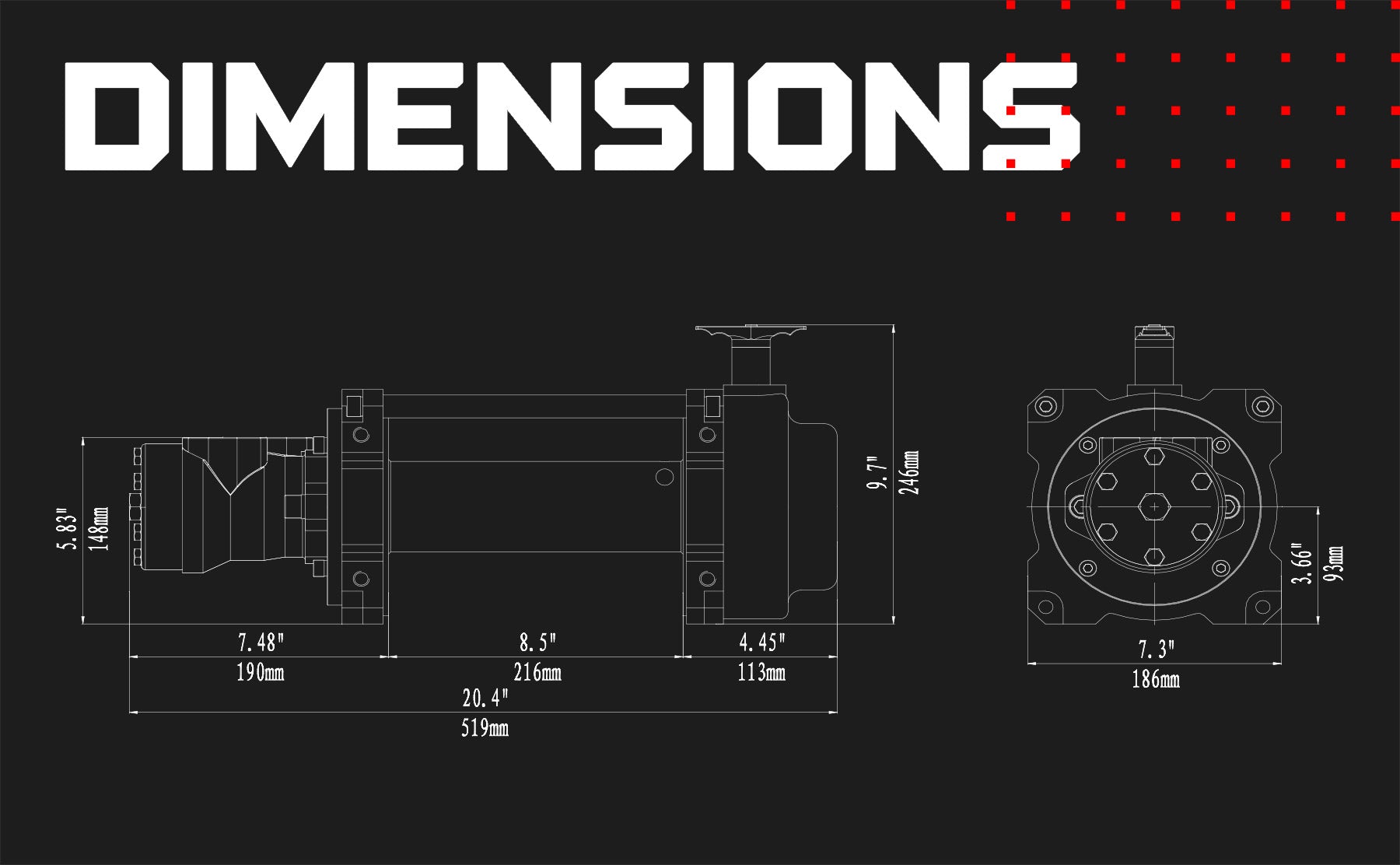

| Dimensions | 554x226x262mm |
| Poids | 68,8 kg |
| Débit maximum L/Min | 5-60 L/Min |
| Pression maximale MPA | 12,5 barres |
| Attestation | CE, UKCA |
| Couche de corde/câble | Traction de ligne : lb (kg) | Corde sur tambour ft(m) |
|---|---|---|
| 1 | 15000 (6804) | 18,0 (5,5) |
| 2 | 12120 (5498) | 41,7 (12,4) |
| 3 | 10168 (4612) | 65,9 (20,1) |
| 4 | 8757 (3972) | 86,9 (26,5) |
| Traction de ligne livres (kg) |
Vitesse de la ligne pied/min (m/min) |
Couler L/min (G/min) |
Pression MPa |
|---|---|---|---|
| 0 | 19,7 (6,0) | 5 | 2.0 |
| 5000 (2268) | 9,8 (3,0) | dix | 4.3 |
| 10000 (4536) | 6,6 (2,0) | 20 | 8.7 |
| 12000 (5443) | 3,3 (1,0) | 30 | 10.0 |
| 15000 (6804) | 1,6 (0,5) | 60 | 13.0 |
Qu'y a-t-il dans la boite
- Treuil hydraulique NH
- Câble de treuil en acier
- Crochet robuste
- Guide-câble à roulements pour usage intensif
| Manuel de l'Utilisateur | Télécharger |
|---|---|
| Brochure | Télécharger |
| Liste des pièces | Télécharger |
