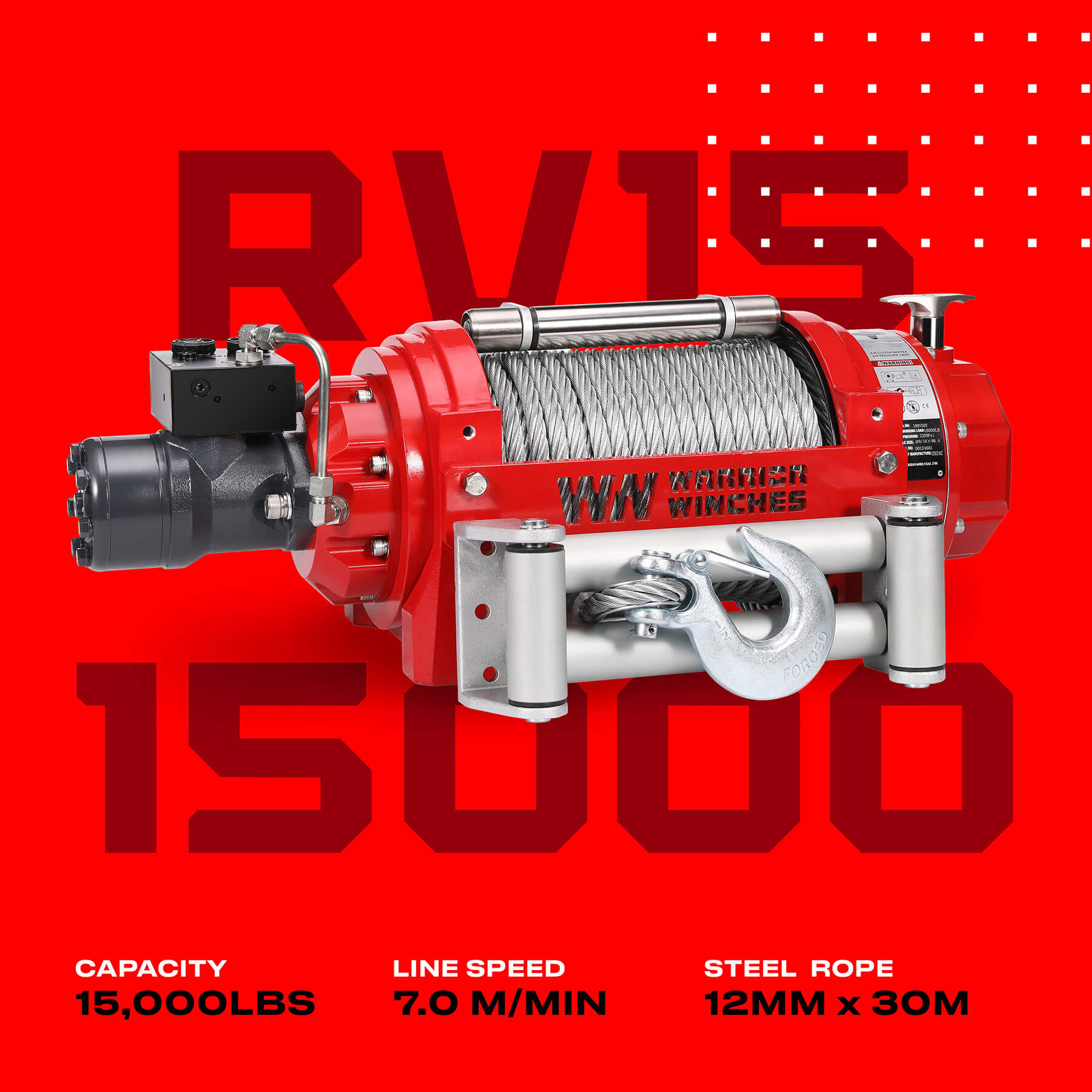

Treuil hydraulique RV 15000

SKU EAN
Synthetic Rope 15RVAHY 5060966746225
Wire Rope 15RVSHY 5060423982913

Rope: Synthetic Rope

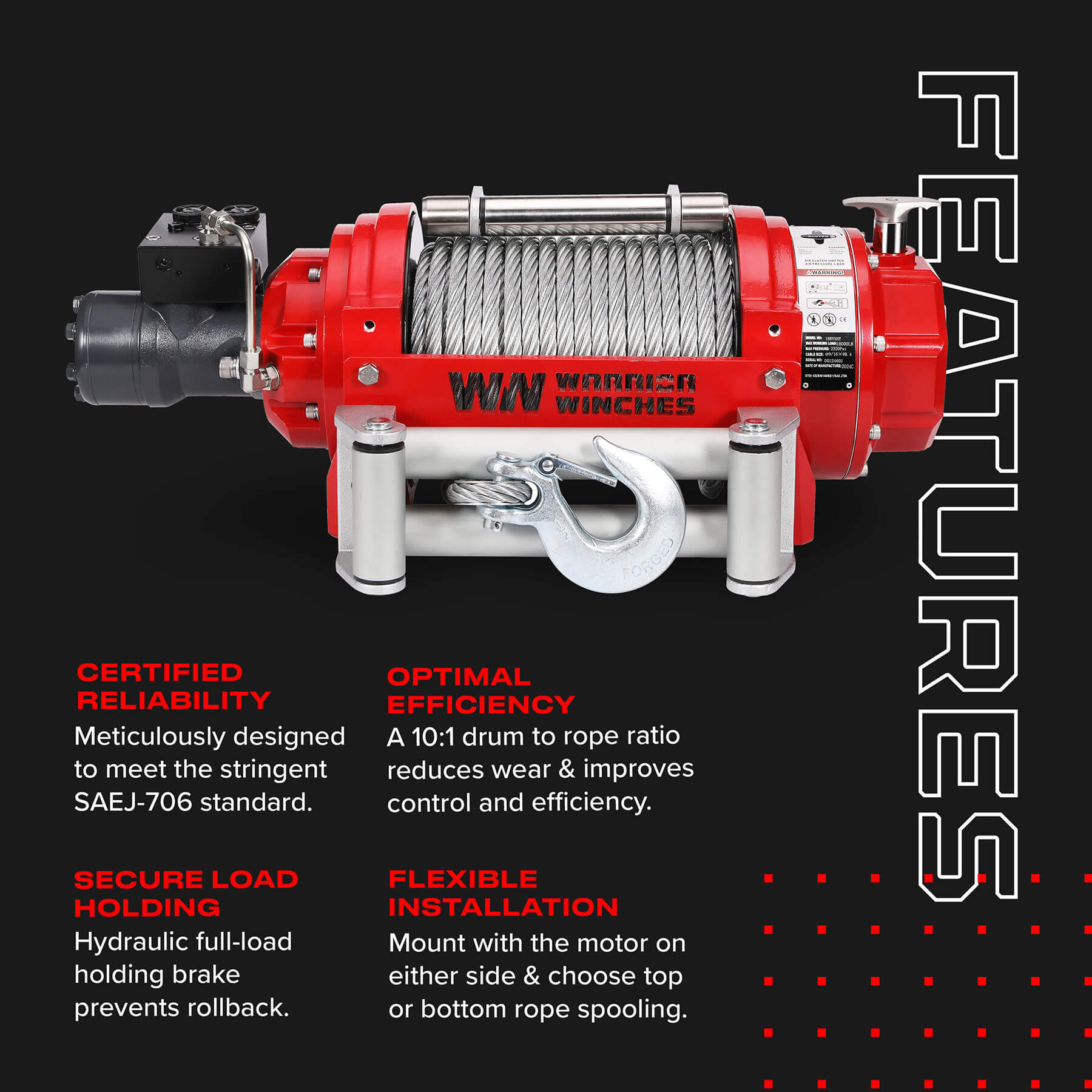

Fonctionnalités

  • Conforms to part of BS EN 14492-1:2006+A1:2009
  • Drum to rope Ratio 10 : 1
  • Wire Rope 2 : 1 Safety Factor
  • Hydraulic Full Load Holding Brake
  • Rope fixing 2.5 Times rated Load
  • Reversable Orientation: These winches can be mounted with the motor on the left or right with the rope spooling from top or bottom.

Our RV Series hydraulic winches are meticulously engineered to meet the SAEJ-706 standard, ensuring quality and performance. With a robust Drum to Rope Ratio of 10:1, these winches deliver optimal efficiency, providing the power you need for challenging commercial and industrial applications.

Safety is our priority, and as such the Wire Rope boasts a 2:1 Safety Factor, whilst the Rope Fixing feature guarantees a robust 2.5 times rated load capacity offering an additional layer of reliability in demanding scenarios. Equipped with a Hydraulic Full Load Holding Brake, these winches provide precise control, enhancing safety and operational stability during load handling.

The RV Series is available in a range of capacities, spanning from 10,000lbs to 18,000lbs, ensuring that there's a perfect fit for your specific needs. Whether you're dealing with intense industrial tasks or demanding commercial projects, our hydraulic winches offer the reliability and strength required to get the job done efficiently.

Choose the RV Series for a hydraulic winch that not only meets industry standards but exceeds expectations in durability, safety, and performance, making it the ideal solution for your toughest applications.

Combined with a suitable installation solution they can meet the requirements of BS EN 14492-1:2006+A1:2009 (Steel Cable Models Only).
Traction nominale de la ligne 15 000 livres
Type de moteur Hydraulique
Engrenage 17.3:1
Embrayage Manuel
Action de freinage Hydraulique
Taille du tambour (Dia x L) 127x266mm
Matériau du câble Acier
Câble – Dia x L 12 mm x 30,0 m
Modèle de montage 303,5 mm x 114,3 mm / 368,5 mm x 171,2 mm (8-M12) mm
Dimensions 735x300x277mm
Poids 83,6 kg
Débit maximum L/Min 5-60 L/Min
Pression maximale MPA 17,5 barres
Attestation CE



Couche de corde/câble Traction de ligne : lb (kg) Corde sur tambour ft(m)
1 15000(6804) 29.5(9.0)
2 12791(5807) 65,6(20,0)
3 11150(5062) 98,4(30,0)
Traction de ligne
livres (kg)
Vitesse de la ligne
pied/min (m/min)
Couler
L/min (G/min)
Pression
MPa
0 23 (7) 10 (2,6) 2,0 (290)
8000 (3629) 16,7 (5,1) 20 (5.2) 9.2 (1337)
10000 (4536) 12,4 (3,8) 30 (7,9) 11,5 (1627)
12000 (5448) 8,5 (2,6) 40 (10.4) 14,0 (2030)
15000 (6810) 4,2 (1,3) 60 (15,6) 17,5 (2537)

Qu'y a-t-il dans la boite

  • Treuil hydraulique RV
  • Guide-câble à roulements pour usage intensif
  • Câble en acier
  • Crochet robuste
  • Tendeur
Manuel de l'Utilisateur Télécharger
Brochure Télécharger
Liste des pièces Télécharger

Warrior Winches 5 Year Warranty

BPE Holdings Ltd are the sole distributors of WARRIOR WINCHES.

We at Warrior understand the importance of warranty for service & repair, we offer a minimum 5-year warranty on all of our Industrial grade winches defined below; An Industrial winch is deemed as such:

- Any winch regardless of capacity that is used in a commercial setting for the purposes of receiving monetary compensation or earning a
- Any winch regardless of capacity that is fastened to a commercial trailer or towing
- Winch Range Warranties: Gladiator Range 7 years / JR Range 5 years / JP Range 5 years / Terminator range 5 years / Samauri range 5 years / NH range 5 years / YP Range 5 years / RV Range 5 years
- For the avoidance of doubt our Trojan, Stealth and Ninja ranges are defined as non-industrial, therefore have a 3 year warranty. Titan winches are given a 5 year warranty.



WARRANTY FOR WARRIOR WINCHES

Warrior Winches warrants to the original retail buyer for Commercial & Industrial use only that any mechanical or electrical component of a genuine WARRIOR WINCH is free of defects for a period of minimum 5 years (winch dependent as per above)

The Warranty DOES NOT cover the cost of transportation / shipping charges to our repair center, labor, replacement or installation of defective parts. If a product is deemed unusable and needs to be replaced, we do not offer a new winch for old policy and the item will be replaced with a similar specification & age to the one that was submitted for repair.

Any product we determine to be defective will be repaired or replaced at our sole discretion without charge to the Buyer upon Buyer’s compliance with this procedure. The Seller or its Authorized Agent may make reasonable charges for parts and for labor for repairs not covered by this 5-year warranty. The warranties set forth herein are exclusive and in lieu of all other warranties, whether oral, written, expressed or implied.



WARRANTY EXCLUSIONS

This warranty excludes:

- Cosmetic defects such as paint, decals, ,
- Worn parts due to improper use.
- Steel ropes
- Armortek Ropes outside of 6 months / Armortek Extreme Ropes outside of 12 months.


- Any Accessory part including roller fairleads, hooks and mounting plates.
- Failures due to acts of God and other force major events beyond the manufacturer’s control
- Problems caused by parts that are not original WARRIOR WINCH parts
- Alteration or modification(s) made by any party other than the
- Remotes, Solenoids and Contactors and isolations switches outside of 12 months.
- Any third party equipment
- Batteries



Warrior Winches shall not be responsible or liable for any indirect or consequential damages. These consequential damages may include, but are not limited to, lost profits or loss of use and down time.

- To obtain service under this warranty, the Buyer must follow the warranty claim process which requires such details as; (1) a photograph(s)/video of the issue with the winch (2) a written description of the problem, (3) Buyers name, address and contact number, (4) copy of the original purchase receipt. Please see warranty process for more details. Prior approval must be obtained before the winch is returned; a unique reference will be given for each return. Any returns outside of this process may not be processed.

This warranty does not apply to defects of the Product caused by; (1) normal wear and tear, (2) failure to comply with any installation or maintenance instructions provided by the Seller, including but not limited to subjecting the Product to loads in excess of the loads listed in any instructions, Owners Manual or as detailed upon the Sellers website, (3) alteration or modification by any parties other than the Seller, (4) misuse, abuse, neglect, accidents, Acts of God, terrorism or (5) other causes beyond the control of the Seller after delivery of the Product to the Sellers Authorized Agent.

Warrior Winches reserves the right to replace any part or whole unit with a newer design of the same function.

   Any purchase bought prior to the revision of this document will hold its current warranty length from the time it was purchased.

All purchases must be registered. Any product that has not been registered will be covered by the standard 1 year warranty.

Register your winch here
